upgraded radiator
Is there a better than stock radiator for the Z31?
I saw one of the Z31s at the last meet. The guy had a 240SX radiator in his (don't remember from which model or year), with a couple of electric
fans. He had the stock radiator fan removed, and mounted this radiator vertically, strapped to the chassis, just in front of where the stock fan used
to sit.
|
|
|
300zdrift99
JDM Muscle!
Posts: 269
Registered: 10/13/2005
Location: Payson, Arizona 85541
State Flag:  Arizona
Favorite Car: 1990 Z32 NA 2+2
Mood: Homicidal
|
| posted on 11/18/2005 at 08:32 |
|
|
subject
I know the NA Z32 can use the Maxima Radiator withs some electric fans and it's bigger than stock and cheap!
Zeto! Zeto!
 |
|
|
Drifter88zxt
Empire Z Member
Posts: 13
Registered: 10/13/2005
|
| posted on 11/19/2005 at 13:10 |
|
|
subject
The stock radiator is fine, unless you need to free up room. At which point there are quiet a few options for vertical mount radiators that will do
fine. Such as:
http://www.secureperformanceorder.com/afcostore/getproduct.cfm?CategoryID=6&a...
Which is the one I'm using. It will mount below the crossmember that has the hood latch on it, and allow room for intercooloer pipes for a FMIC.
Some people expecially those in the japanese z31/200zr car clubs mount a larger radiator (taller) in FRONT of the hood latch crossmemeber rather than
beneath it, and they usually install thicker rads too. I don't have a part number for ya, just will have to measure it up and go to a rad site. The
link I posted above does custom rads, or you can find a pre-fabbed one that has the measurements you want.
|
|
|
Drifter88zxt
Empire Z Member
Posts: 13
Registered: 10/13/2005
|
| posted on 11/19/2005 at 13:14 |
|
|
subject
Here is the Rad Mounted with a Permacool 14in fan.
|
|
|
Drifter88zxt
Empire Z Member
Posts: 13
Registered: 10/13/2005
|
| posted on 11/19/2005 at 13:16 |
|
|
subject
And here is a pic with the IC mounted in front, the IC pipes (not pictures) run along the driver side of the Rad.
[img]
|
|
|
Drifter88zxt
Empire Z Member
Posts: 13
Registered: 10/13/2005
|
| posted on 11/19/2005 at 13:20 |
|
|
subject

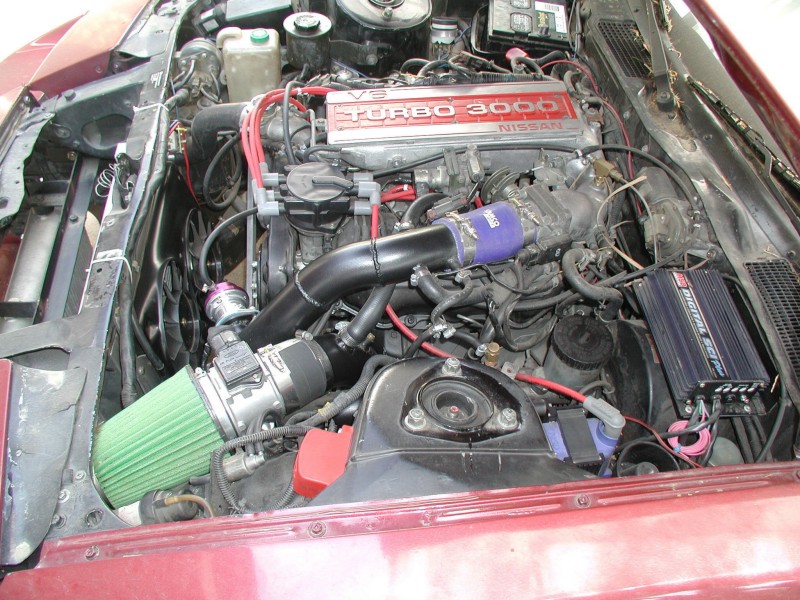

Lastly with IC pipes in, my setup requires the removal of the AC though:
|
|
|
 jmallard
[Admin]
Posts: 1351
Registered: 10/9/2005
Gender: Male
Location: SoCal
State Flag:  California
Favorite Car: 1990 300ZX TT
Mood: Always Confused
|
| posted on 11/19/2005 at 20:29 |
|
|
subject
Drifter88zxt,
I resized your picture. It was a little too wide.
Jerry
|
|
|
Ford_Falcon
Aussie Dave
Posts: 32
Registered: 10/20/2005
Location: Lake Perris
|
| posted on 11/20/2005 at 17:22 |
|
|
subject
g'day Drifter88zxt,
You took off the front face, hood, intercooler, just to show me a pic of your aftermarket radiator? That's pretty cool!
Looks like a good setup you've got there. How much did that radiator set you back? I checked the link out. I noticed in one shot you've got two
fans, and in the other you have one. Are two better than one? I've a friend who raves about Spaal electric fans. Are they all much the same too? Is
it better to get one with a higher cfm rating? I'm assuming so if I live in a warm climate.
I'd like to get this upgrade done before the summer comes around again.
|
|
|
Drifter88zxt
Empire Z Member
Posts: 13
Registered: 10/13/2005
|
| posted on 11/20/2005 at 20:46 |
|
|
subject
lol, I'm just a nice guy =)
The radiator in my pic is the same one in the link I gave you. It cost me 200, and shipping was free when I bought it. But it appears their prices
have gone up bout 30 bucks.
As for the fan, I was having cooling issues, and I thought maybe it was becuase I was using an unshrouded fan. So I bought the Twin Scirrico fans and
put them on. My cooling issues remained, I later found out it was becuase of my heater core bypass house, I plugged up that hose and my cooling issues
went away, and I went back to the unshrouded fan because it flowed more CFMs (2950 vs 2000 if I remember correctly).
|
|
|
Ford_Falcon
Aussie Dave
Posts: 32
Registered: 10/20/2005
Location: Lake Perris
|
| posted on 11/22/2005 at 07:00 |
|
|
subject
Hi drifter,
Could I ask one more favour. Would you tell me, or show me how you have the piping running for the lower end of the radiator?
Also, looking at your photos (which are very helpful), I see you have two pipes, one to the air filter. Where does the other one go to? If you had an
overhead shot that would be awesome.
Thanks very much.
Dave
|
|
|
Spyder Z 15
6'8"
Posts: 347
Registered: 10/13/2005
Gender: Male
Location: Riverside, CA, 92518
State Flag: California
Favorite Car: '93 Slicktop Z32
Mood: Friggin excellent
|
| posted on 11/22/2005 at 08:34 |
|
|
subject
^^^
Turbo maybe?
|
|
|
300zdrift99
JDM Muscle!
Posts: 269
Registered: 10/13/2005
Location: Payson, Arizona 85541
State Flag: Arizona
Favorite Car: 1990 Z32 NA 2+2
Mood: Homicidal
|
| posted on 11/22/2005 at 14:46 |
|
|
subject
MmMmmmmm... Turbo's....
Zeto! Zeto!
|
|
|
Drifter88zxt
Empire Z Member
Posts: 13
Registered: 10/13/2005
|
| posted on 11/22/2005 at 20:19 |
|
|
subject
There are actually 3 IC pipes.
The one with the Air-Filter of course connects to the inlet of the compressor housing.
Then there is the second pipe (not pictured) that connects to the outlet of the compressor housing, which then goes to the bottom IC inlet.
Then there is the 3rd pipe which you can see, which goes from the top outlet pipe on the IC to the throttle body.
I'll see if I have a pic that shows this.
|
|
|
Drifter88zxt
Empire Z Member
Posts: 13
Registered: 10/13/2005
|
| posted on 11/22/2005 at 20:39 |
|
|
subject
I don't have any pics that show exactly what you want at the moment:
The lower Rad piping uses the stock metal pipe then I have question (?) mark shapped hose that attaches to that metal pipe the bottom of the question
mark would be attached to the metal pipe. Then the pipe proceeds out a bit then loops back around and attaches to the lower Rad inlet (the top left
part of the question mark attaches to the rad inlet). Sorry thats as descriptive as I can be without a picture.
Also, feel free to read this sort of diary of progress on my car, has some pics that are not here, and some of the things I did a few years back.
http://300zxclub.com/showthread.php?t=15509
Might give you some ideas.
|
|
|
Ford_Falcon
Aussie Dave
Posts: 32
Registered: 10/20/2005
Location: Lake Perris
|
| posted on 11/25/2005 at 10:15 |
|
|
subject
Drifter, thanks very much for the link. I've browsed the 300zxclub for awhile, but I must have missed that one.
|
|
|
